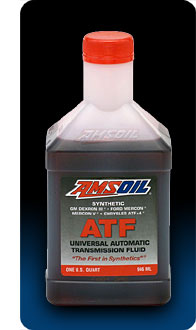

AMSOIL Synthetic Universal Automatic Transmission
Fluid
For outstanding performance in transmissions,
power steering and hydraulic applications.
PRODUCT DESCRIPTION
AMSOIL Synthetic Automatic Transmission
Fluid (ATF) exceeds the performance requirements for
domestic and foreign automatic transmission fluid
applications. AMSOIL ATF provides automatic transmissions,
power steering units and hydraulic equipment with
excellent lubricating protection and better performance
over a wider temperature range than conventional automatic
transmission fluids.

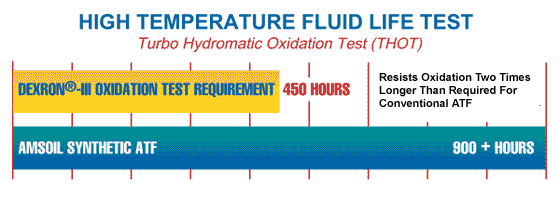

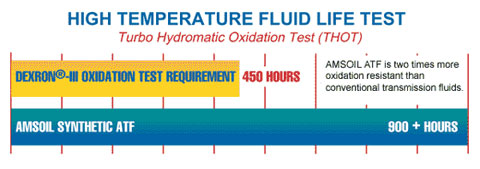

Resists Oxidation and Thermal Degradation
AMSOIL ATF resists thermal and oxidative
degradation better than conventional transmission
fluids, protecting clutches, planetary gears, valves,
pumps and seals from damaging sludge and varnish deposits.
AMSOIL ATF helps prevent component overheating and
ensures cooler, smoother transmission operation.
Provides Low Temperature Protection
AMSOIL ATF outperforms petroleum fluids
in low temperature fluidity. In fact, AMSOIL ATF offers
twice the cold temperature fluidity required by current
automatic transmission fluid specifications. AMSOIL
ATF provides easier starting, faster warm-ups, smoother
shifting and improved fuel economy.
Antiwear Protection
AMSOIL ATF provides smooth shifting
and long, trouble-free transmission life. In addition,
the antiwear additive package makes AMSOIL ATF an
excellent lubricant in other hydraulic systems. In
tests designed to measure wear characteristics under
severe service and high pressure operating conditions,
AMSOIL ATF far exceeds the requirements of hydraulic
equipment manufacturers.
Extends Drain Intervals
AMSOIL ATF is a stable formulation
that lasts longer in service than conventional ATFs.
It maintains its viscosity, friction and lubricating
properties for extended periods of time, even under
severe conditions. AMSOIL ATF maximizes transmission
performance and service life while reducing maintenance
costs through longer drain intervals.
APPLICATIONS
AMSOIL Synthetic Universal Automatic
Transmission Fluid is completely compatible with other
synthetic and petroleum automatic transmission fluids.
AMSOIL ATF is a universal, multi-functional fluid
that greatly reduces the need for specialized fluid
inventories and the possibilities of misapplication.
AMSOIL ATF is recommended for transmission,
hydraulic and other applications requiring any of
the following specifications:
- GM DEXRONŽ II & III
- Ford MERCONŽ, MERCONŽ V
- Chrysler ATF+ through ATF+4Ž
- Honda Z-1 (Not
for use in CVT transmissions)
- Toyota Type T and T-IV
- Mitsubishi/Hyundai Diamond SP
II & III
- Allison C-3, C-4
- Caterpillar TO-2
- Voith G607, G1363
- ZF TE-ML 14A, 14B & 14C
- Mercedes Benz 236.1, 236.6, 236.7,
236.9
- BMW 7045E
- JWS 3309
- Vickers I-286S & M-2950S
Excellent for power steering units that use ATF.
Not for use in CVT transmissions.
SERVICE LIFE
AMSOIL Synthetic Automatic Transmission
Fluid is recommended for use up to 60,000 miles under
severe service* and up to 100,000 miles under normal
service* or according to the vehicle manufacturer
recommended intervals, whichever is longer. AMSOIL
recommends thoroughly draining the transmission and
flushing with new AMSOIL ATF to achieve a minimum
90% purity of new transmission fluid. Drain intervals
may be extended further with oil analysis.
* As defined by the vehicle
or transmission manufacturer.
HEALTH & SAFETY
This product is not expected to cause
health concerns when used for the intended application
and according to the recommendations in the Material
Safety Data Sheet (MSDS). MSDS's are available upon
request at 715-392-7101. Keep Out of Reach
of Children. Don't pollute. Return used oil
to collection centers.
TYPICAL TECHNICAL
PROPERTIES
|
AMSOIL Synthetic
Universal Automatic Transmission Fluid (ATF)
|
Kinematic Viscosity @ 100°C, cSt
(ASTM D-445)
|
7.5
|
Kinematic Viscosity @ 40°C, cSt
(ASTM D-445)
|
37.4
|
Viscosity Index (ASTM D-2270)
|
172
|
Noack Volatility, % weight loss
(ASTM D-5800)
|
10.1
|
Flash Point °C (°F) (ASTM D-92) |
224 (435)
|
Pour Point °C (°F) (ASTM D-97)
|
-52 (-61)
|
Four Ball Wear Test, Scar in mm;
40 kg, 75°C, 1200 rpm, 1 hr (ASTM D-4172B)
|
0.40
|
Brookfield Viscosity (cP)
|
-20°C = 1342
|
Brookfield Viscosity (cP)
|
-40°C = 9621
|
|
