Donaldson TopSpin™ Filters
Donaldson TopSpin™ pre-cleaner
air filters extend primary air filter life, boost
system efficiency and extend engine life in all off-road
heavy-duty applications, such as farm equipment, backhoes,
dozers and more.
Self-Ejecting Pre-Cleaner Air
Filter Maximizes Air Intake Systems

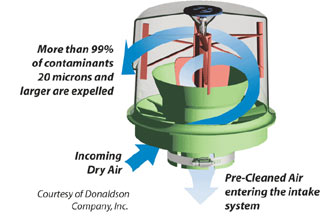

How It Works
The Donaldson TopSpin™ draws
in dirty air, forcing the pre-filtered clean air into
the air inlet and automatically ejecting mixed debris
out the side of the unit. It is self-ejecting and
self-scavenging, so it never has to be emptied or
cleaned.
Superior Filtration Performance
The Donaldson TopSpin™ separates
up to 85 percent of all incoming contaminants and
more than 99 percent of particles 20 microns and larger,
reducing air filter usage and greatly extending filter
life. The TopSpin™ continues to work at engine
idle, cleaning the incoming air even when the equipment
is not moving. Pre-filtering incoming air provides
lower restriction, improving engine performance and
reducing filter costs. The TopSpin™ has a range
of 90 - 1500 cubic feet per minute (CFM).
TopSpin™ vs. Dust Bowl
The TopSpin™ provides many advantages
over the traditional dust bowl-style pre-cleaners.
Dust bowl technology collects contaminants and cannot
pre-clean the air when it reaches capacity. Donaldson
TopSpin™ pre-cleaners continuously eject contaminants,
providing continuous and consistent pre-cleaning.
Dust bowls require frequent dumping
and cleaning, and create ongoing expenses for customers
forced to continually replace damaged bowls. The TopSpin™
installs quickly and easily with only one clamp to
tighten. It requires no dumping and no cleaning.
Solid Construction
The Donaldson TopSpin™ features
a robust design. Its dual mounted bearings are sealed
for extended life, and they allow the scavenging blades
to spin quietly, continually cleaning the TopSpin™
and ejecting contaminants.
Donaldson TopSpin™ Available
Now
The Donaldson TopSpin™ is now
available from AMSOIL.
|
