Manual Transmission and Transaxle Gear Lube

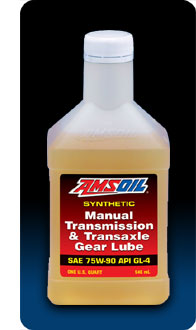

AMSOIL Synthetic Manual Transmission and Transaxle Gear Lube 75W-90 API GL-4

New AMSOIL Synthetic Manual Transmission and Transaxle Gear Lube (MTG) meets and exceeds the gear, bearing, synchromesh and seal demands found in automobiles and light trucks.

PRODUCT DESCRIPTION

New AMSOIL Synthetic Manual Transmission and Transaxle Gear Lube (MTG) meets and exceeds the gear, bearing, synchromesh and seal demands found in automobiles and light trucks.

AMSOIL Synthetic Manual Transmission and Transaxle Gear Lube (MTG) is designed to meet the special requirements of certain manual transmissions and transaxles, such as the New Venture NV4500. It is designed to replace AMSOIL 80W-90 Synthetic Gear Lube (AGT) and provide improved internal component protection. These transmissions are cast iron and have exhaust pipes close to them, causing them to run hot. Increased operating temperatures can harden seals and cause oil leaks. In addition to lubricating gears, bearings and synchromesh systems, transmission oil must keep seals soft even when temperatures increase. The premium synthetic formulation of AMSOIL Synthetic Manual Transmission and Transaxle Gear Lube is designed to specifically address the needs of these hot running transmissions.

MTG is formulated with extreme pressure (EP) additives and advanced synchromesh qualities that provide smooth shifts while protecting gears, bearings and seals. It is not corrosive to yellow metals, such as copper, that are used in some synchromesh systems. MTG provides the maximum transmission and transaxle internal component protection.

Applications

MTG is recommended for synchronized manual transmissions and transaxles that require 75W-85, 75W-90 or 80W-90 API GL-4 gear lube. Recommended for use in NV 4500 transmissions and replaces GM part # 12346190 and Chrysler part # 4874459 (Chrysler specification MS-9070). MTG meets GL-4 performance specifications required by some models of Acura, Hyundai, Infiniti, Kia, Land Rover, Lexus, Mazda, Mitsubishi-Fuso and Zetor. Ideal for muscle car transmissions, including Muncie, Borg Warner, Saginaw, Ford Toploader, Dearborn and New Process.

TYPICAL TECHNICAL PROPERTIES
Synthetic Manual Transmission and
Transaxle Gear Lube 75W-90 API GL-4 (MTG)
Kinematic Viscosity @ 100C, cSt (ASTM D-445)
13.8
Kinematic Viscosity @ 40C, cst (ASTM D-445)
83.7
Viscosity Index (ASTM D-2270)
170
Flash Point, C (F) (ASTM D-92) 150C Min.
226 (439)
Pour Point, C (F) (ASTM D-97)
-48 (-54)
4-Ball Wear 75C, 1200 rpm, 40kg, 1 hr.
0.38mm
Brookfield Viscosity @ -40C
42,846
Foam Stability (ASTM D-892) (20/50/20)
0/0/0
Copper Corrosion (3 hr, 121C) (ASTM D-130)
1B
