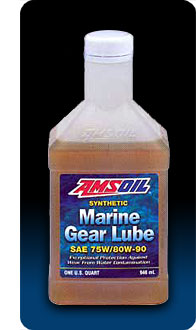

AMSOIL SAE 75W/80W-90 Synthetic Marine Gear Lube
PRODUCT DESCRIPTION
AMSOIL Universal Synthetic Marine
Gear Lube is an exclusive AMSOIL formulation of synthetic
base oils and high performance additives that address
the specific concerns of marine applications. It is
extreme pressure (EP) additive fortified for superior
protection of fast accelerating, high torque/horsepower
engines. It protects against shock loading from cavitation
of heavily loaded engines.
AMSOIL Universal Synthetic Marine
Gear Lube is water resistant. It maintains extreme
pressure protection even when contaminated with as
much as 10% water. It promotes longer seal life, preventing
excessive water leakage. AMSOIL Universal Synthetic
Marine Gear Lube protects against rust and is compatible
with aluminum, copper and brass alloys.
APPLICATIONS
AMSOIL Universal Synthetic Marine
Gear Lube is recommended for fresh and salt water
applications requiring either 75W-90 or 80W-90 viscosity
grade and meeting either API GL-4 or GL-5 performance
standards.
Examples of AMSOIL Universal Synthetic
Marine Gear Lube applications include:
|
Outboard Lower Units:
Mercury/Mariner
Johnson/Evinrude
Bombardier
Honda
Yamaha
Suzuki
Force/US Marine
Nissan
Tohatsu
Harbormaster Marine Outboard Drives
Sears Gamefisher and Seagull
Sterndrives:
Mercruiser-Bravo
OMC/Bombardier
Volvo-Penta
Yanmar
Konrad
Marine Drive Systems
|
V-Drives:
Casale & Menkens
Bow & Tunnel Thrusters:
Harbormaster Marine
Marine Transmissions:
ZF Marine Transmission
|
Marine gear oils operate in environments subject to
water contamination. The chart below demonstrates
the ability of AMSOIL Universal Synthetic Marine Gear
Lube to maintain designed qualities such as extreme
pressure/anti-wear performance and resistance to foaming,
even when subjected to 10% water contamination.
The Falex Procedure is measurement
of a gear lube's extreme pressure and anti-wear properties.
A high value in the Falex Extreme Pressure Test relates
to extra extreme pressure protection. AMSOIL Universal
Synthetic Marine Gear Lube is not affected by water
and provides 50% more extreme pressure protection
for long gear and bearing life.
The presence of foam in a lubricant
disrupts oil film and promotes wear. Water contamination
can increase the likelihood of foaming. Industry standard
testing demonstrates zero foam in both new and water-contaminated
AMSOIL Universal Synthetic Marine Gear Lube. Other
conventional gear lubes can foam when mixed with water,
as seen in the graph.
|
Extreme
Pressure and Foam Stability Testing
|
|
Test
|
AMSOIL Universal Synthetic Marine
Gear Lube (AGM)
|
Conventional Gear Lube (A)
|
Conventional Gear Lube (B)
|
FALEX Extreme Pressure Load Test
B (LbF)
(ASTM D-3233B) |
|
no water
|
with 10% water
|
|
1500
|
1500
|
|
|
no water
|
with 10% water
|
|
1100
|
1000
|
|
|
no water
|
with 10% water
|
|
1000
|
1000
|
|
|
Foam Stability
(ASTM D-892)
Sequence I
Sequence II
Sequence III
|
|
no water
|
with 10% water
|
|
0/0
0/0
0/0
|
0/0
0/0
0/0
|
|
|
no water
|
with 10% water
|
|
0/0
0/0
0/0
|
0/0
0/0
0/0
|
|
|
no water
|
with 10% water
|
|
0/0
0/0
0/0
|
375/290
590/0
380/305
|
|
|
TYPICAL TECHNICAL PROPERTIES
|
|
AMSOIL Universal Synthetic Marine Gear Lube
75W/80W-90 (AGM)
|
|
Kinematic Viscosity @ 100°C, cSt
(ASTM D-445)
|
14.7
|
|
Kinematic Viscosity @ 40°C, cSt
(ASTM D-445)
|
116.0
|
| Viscosity Index |
130 |
|
Flash Point °C (°F) (ASTM D-92)
|
216 (420.8) |
|
Pour Point °C (°F) (ASTM D-97)
|
-43 (-45)
|
| Falex Procedure B (ASTM D-3233)
(failure load, LbF.) |
1500 |
| Foam Stability (ASTM D-892)
(20/50/20 maximum) |
0/0/0 |
AMSOIL Universal Synthetic Marine gear Lube is compatible
with other commercially available conventional and
synthetic marine gear lubes.
Follow manufacturers recommended
service intervals.
It is generally a good idea to
change gear lube at the end of the season prior to
storage.
|
