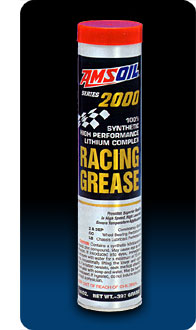

AMSOIL Series 2000 Synthetic Racing Grease
Ultimate protection for hard-driven,
high-performance vehicles. Dramatically reduces friction
and wear for improved performance. Excels at both
high and low temperature performance. Outperforms
other conventional and synthetic greases.
Applications
AMSOIL Series 2000 Synthetic Lithium
Complex Racing Grease meets the highest performance
standards of the National Lubricating Grease Institute,
GC for wheel bearing applications and LB for chassis
applications.
Load Capacity
AMSOIL Series 2000 Racing Grease
is an extreme-pressure multi-purpose grease formulated
for high-temperature/high-speed applications. Yet,
it excels in the protection of low-speed bearings,
a job usually reserved for heavy-duty products. Components
get the load bearing capacity of a heavy-duty grease
without sacrificing the high-temperature protection
of a multi-purpose.
Anti-Wear Performance
AMSOIL Series 2000 Racing Grease
passes the Ford Film Strength Endurance Test with
a 16 point margin (see graph). Most nonsolid-fortified
racing greases, synthetic or conventional, do not
pass. AMSOIL Series 2000 Racing Grease keeps greased
components in like-new condition.
 All-Temperature
Protection
AMSOIL Series 2000 Racing Grease
pairs a high Viscosity Index synthetic base oil with
a top-quality lithium complex thickener, known for
its extraordinary performance in temperature extremes.
AMSOIL Series 2000 Racing Grease offers excellent
low-temperature pumpability and high-temperature consistency
for dependable all-temperature protection.
Oxidation Resistance and Inhibition
AMSOIL Series 2000 Racing Grease's
excellent oxidation resistance and robust package
of oxidation inhibitors prevent grease breakdown and
component surface damage in the highly oxidizing conditions
associated with high temperature operations.
Friction Reduction
AMSOIL Series 2000 Racing Grease
maximizes power through-put and fuel efficiency by
minimizing friction. The extra power given by Series
2000 improves acceleration and top-end speed.
Washout Resistance and Corrosion
Inhibition
AMSOIL Series 2000 Racing Grease
resists water wash out and inhibits rust and other
forms of corrosion.
| Typical
Technical Properties |
| AMSOIL
Synthetic Lithium Complex Racing Grease |
NLGI
GC-LB |
Series
2000 Racing Grease |
| Thickener |
NR* |
Lithium
Complex |
| NLGI
Consistency Grade |
NR* |
2
EP |
| NLGI
Performance Grade |
NR* |
GC-LB |
| Penetration
(ASTM D-217) 25° C [77° F], 0.1 mm Worked 60 strokes |
220
- 340 |
265
- 295 |
| Dropping
Point (ASTM D-566) °C [77° F] |
220
[428] |
285
[545] |
| Water
Washout (ASTM D-1264) 79° C [175° F] % loss |
15
max |
5.1 |
| Oil
Separation (ASTM D-1742) 24 hr. @ 25° C [77° F],
% loss |
10
max |
2.8 |
| Rust
Protection (ASTM D-1743) |
pass |
pass |
| Timken
OK Load Test (ASTM D-2509), lbs. |
NR* |
60 |
| Fortified
with Moly Compound |
NR* |
no |
| Four
Ball Wear Test (ASTM D-2266) Wear Scar Diameter,
mm |
0.9
max |
0.32 |
| Compatibility
with other greases |
NR* |
excellent |
| Extreme
Pressure, Four Ball Method (ASTM D-2596) Weld
Point, kgf |
200
min |
400 |
| Extreme
Pressure, Four Ball Method (ASTM D-2596) Load
Wear Index, kgf |
30
min |
65 |
| High
Temperature Life (ASTM D-3527) hours |
80
min |
300 |
| Fretting
Wear (ASTM D-4170)* mg |
10
max |
3.4 |
| Elastomer
Compatibility (ASTM D-4289) Volume Change, %,
GC |
-5
to +30 |
21.6 |
| Elastomer
Compatibility (ASTM D-4289) Volume Change, %,
LB |
0
to +30 |
9.88 |
| Elastomer
Compatibility (ASTM D-4289) Hardness Change, durometer-A
points, GC |
+2
to -15 |
-3
|
| Elastomer
Compatibility (ASTM D-4289) Hardness Change, durometer-A
points, LB |
0
to -10 |
-6 |
| Leakage
(ASTM D-4290), G* |
10
max |
6.0 |
| Low
Temperature Torque (ASTM D-4693) n·m, max @ -40°
C [-40° F] |
15.5 |
2.3 |
| Water
Spray Off (ASTM D-4049), % max |
NR* |
22.7 |
| *
NR: Not Required for NLGI GC or LB labeling |
|
|
